Ziptrak® outdoor blinds in Adelaide

Track-guided outdoor blinds with the fabric held in aluminium side channels, in mesh or clear PVC, spring-operated or motorised. Measured, made and fitted by Stan Bond, a genuine Ziptrak® Authorised Fabricator.

Free in-home measure and quote

Someone from our team contacts you to arrange the measure. A written quote follows.

Where it may suit

  • Alfresco areas, patios and verandahs, including west-facing alfrescos that cop the afternoon sun, to extend your outdoor entertaining season
  • Openings up to about 6 m wide in mesh (4.5 m in clear PVC) and about 3.5 m drop
  • Enclosing an area in clear or tinted PVC for year-round use

The main choices

  • Hand or motorised, with a centre release handle or side latches
  • Mesh at 1% or 5% openness, or clear or tinted PVC
  • Open or closed hood, pelmet and powder-coat colour

What we check at the measure

  • The width and drop of each opening
  • The post or wall each side channel attaches to
  • How exposed the opening is to wind and weather
  • Provisions on the structure, if you are building or renovating

Care

  • Hose gently with cold water and a soft brush; no harsh chemicals
  • Wipe the channels to keep the glide smooth
  • Fully retracted, or down and locked, in wind

Features and benefits

If you are building or renovating, contact us early so we can help ensure the correct provisions are made on your outdoor structure.

  • Easy to operate
  • Modern colours
  • UV protection

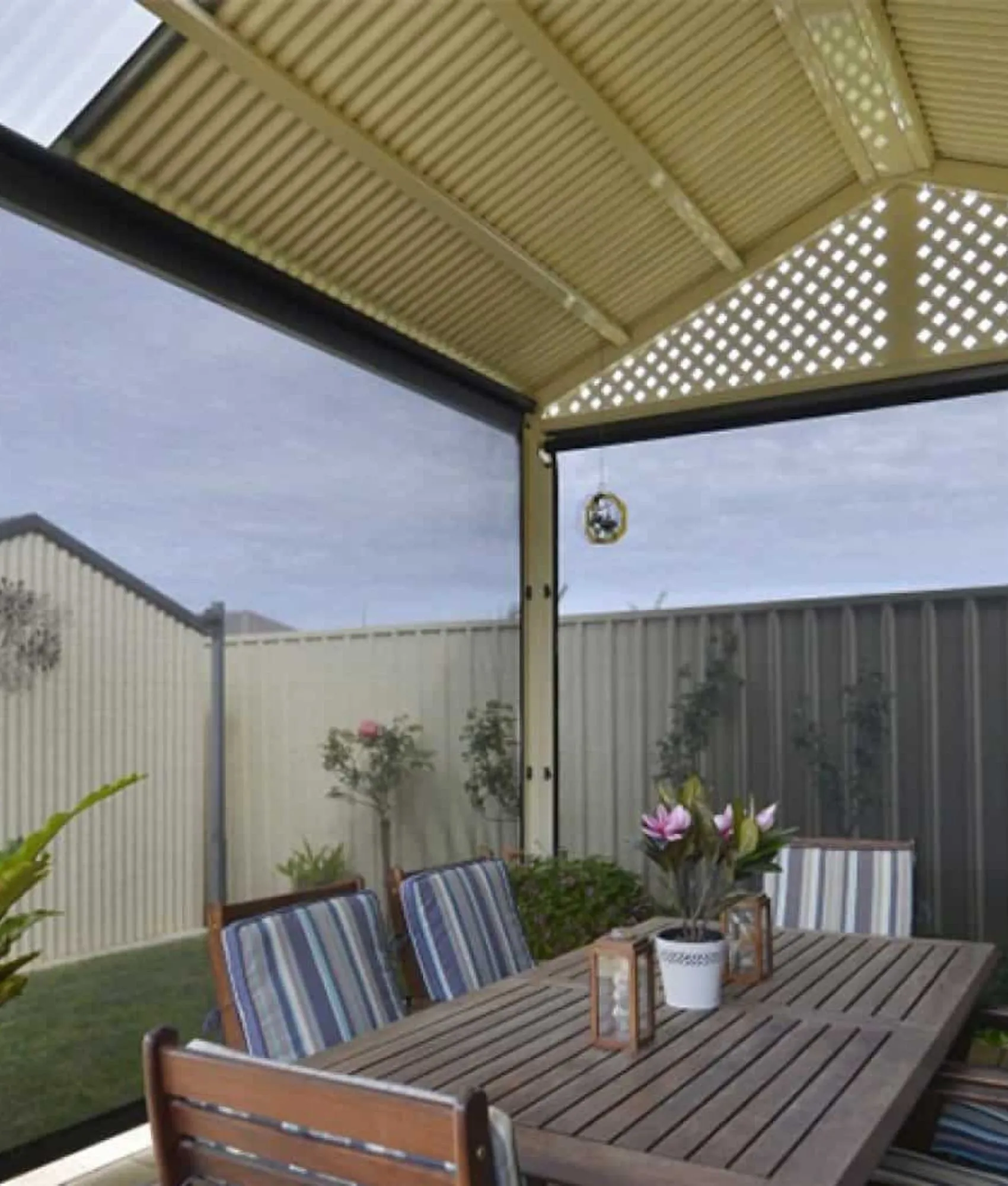

Outdoor dining setting under a gabled pergola with mesh outdoor blinds lowered on the open sides

Where a Ziptrak® blind suits

Ziptrak® is a proudly South Australian innovation, designed to extend and improve your outdoor entertaining season. The fabric is held into aluminium side channels to create a rain and wind resistant barrier, and the blinds offer shade, weather protection and a tidy look, with no buckles, no straps, no noisy flapping and no gaps.

Customers have particularly loved the benefits of a Ziptrak® when made using a clear or tinted PVC material. This encloses the area from the majority of wind, rain and insects, making it a year-round outdoor solution.

A dark charcoal or black mesh is a popular choice. The dark fabric hides dirt and marks and lets you look easily through to the view outside.

Two charcoal Ziptrak blinds between the posts of a paved patio, one lowered further than the other

Your options

Every Ziptrak® blind is made to measure from genuine Ziptrak® components. These are the choices we talk through at the measure.

Close-up of a Ziptrak bottom rail with the centre release handle, mesh fabric above

Operation

Choose hand or motorised operation. Both come with the brand’s latest reducer technology, which helps keep the fabric flat as the blind rolls up. The spring operation makes it quick to raise and lower the blind, and the centre release handle is one of the best options in the market for a straightforward release.

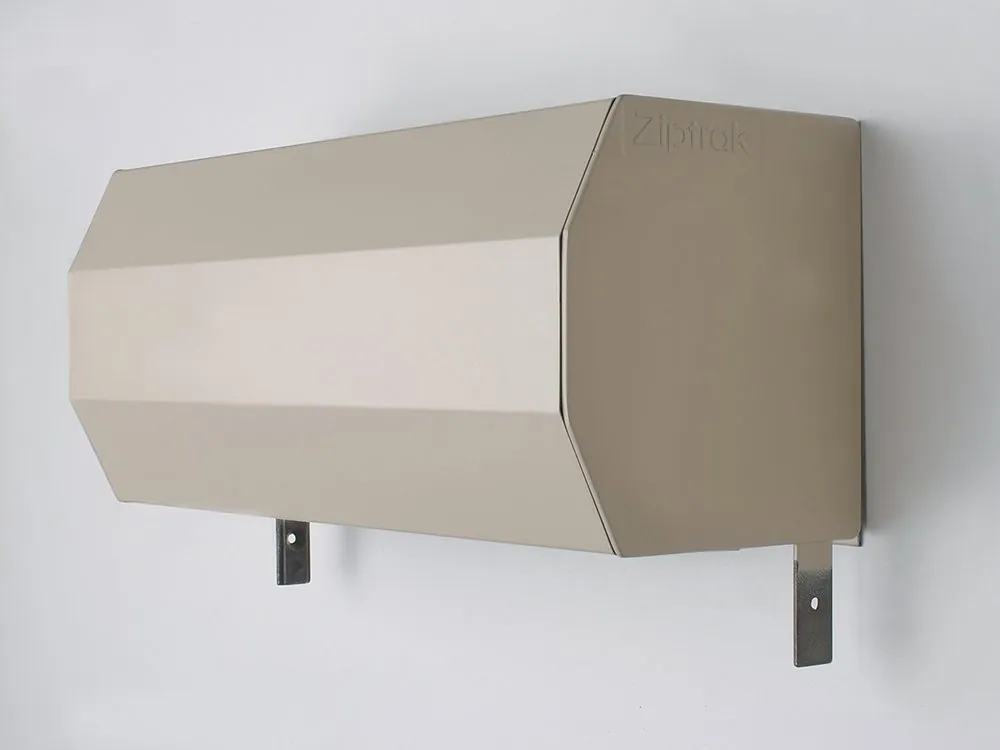

A Ziptrak headbox in a beige powder-coat finish, shown on its own

Design choices

An open or closed hood to hide the workings, and a variety of custom powder-coated colours to match and complement the home. An additional pelmet over the roller finishes the look.

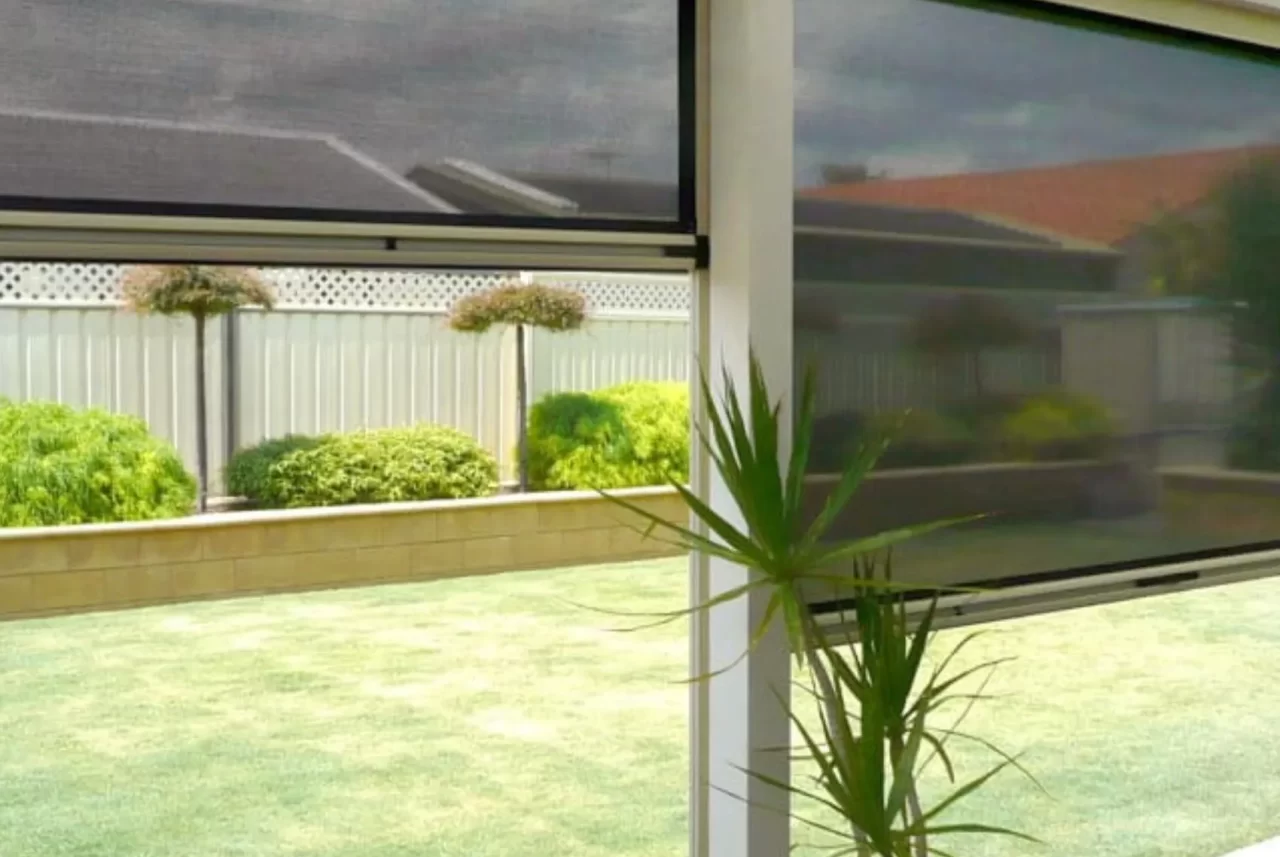

View from a patio through a lowered mesh Ziptrak blind, with a second blind raised part-way beside it

Fabric

With a broad choice of outdoor fabrics: PVC coated woven polyester mesh at 1% or 5% openness, clear or tinted PVC, and acrylic fabrics. For clear PVC we use the highest quality, low shrink Japanese Clear PVC available.

How it works

A spline that is welded to each side of the fabric is wrapped around an aluminium top tube, which can then be covered by a pelmet.

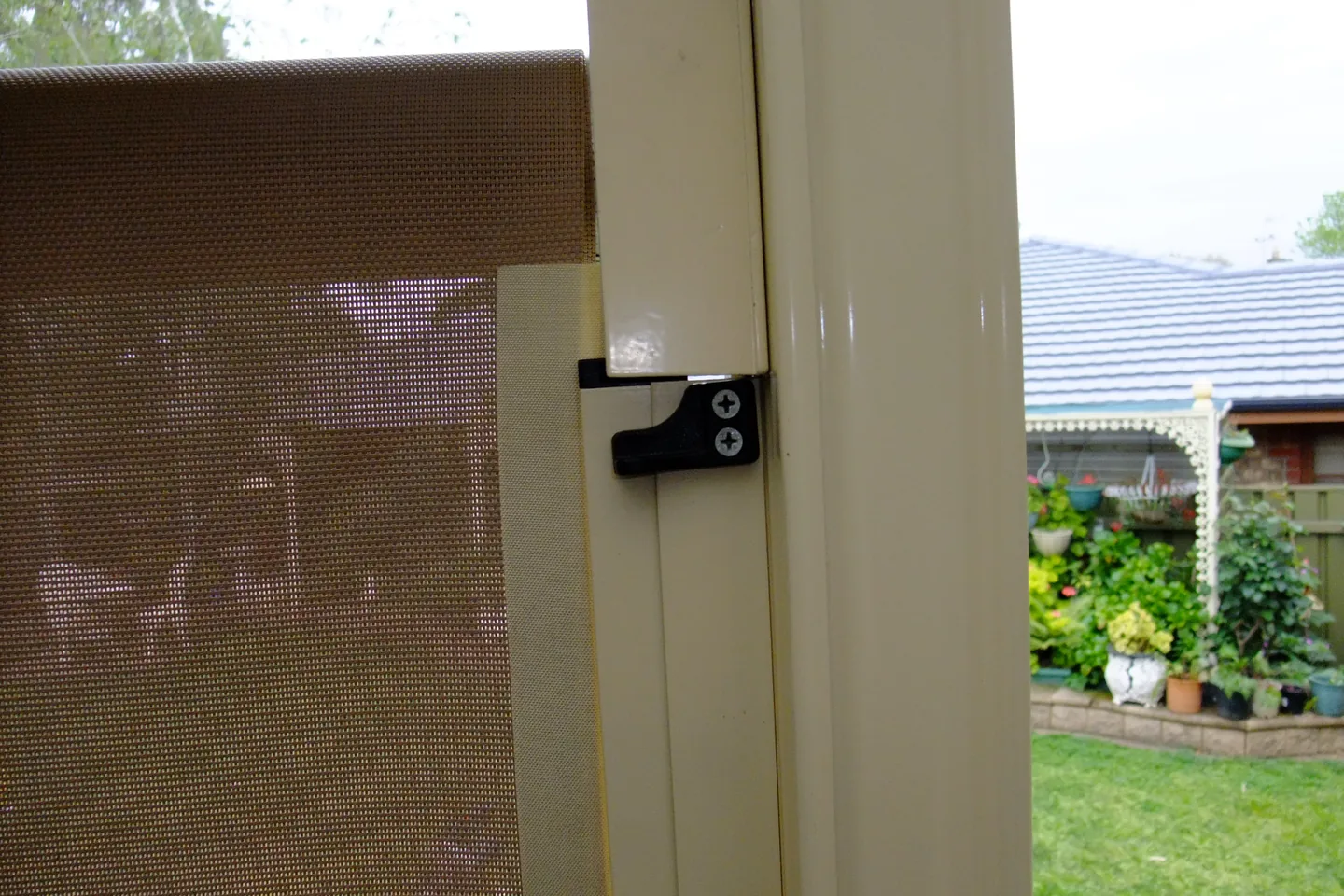

At each side of the blind is an inner and outer channel that attaches to a post or wall, which the fabric slides down and is captured within. A powder coated bottom rail is attached to the fabric; release it with the centre release handle, or with the bottom latches at each side.

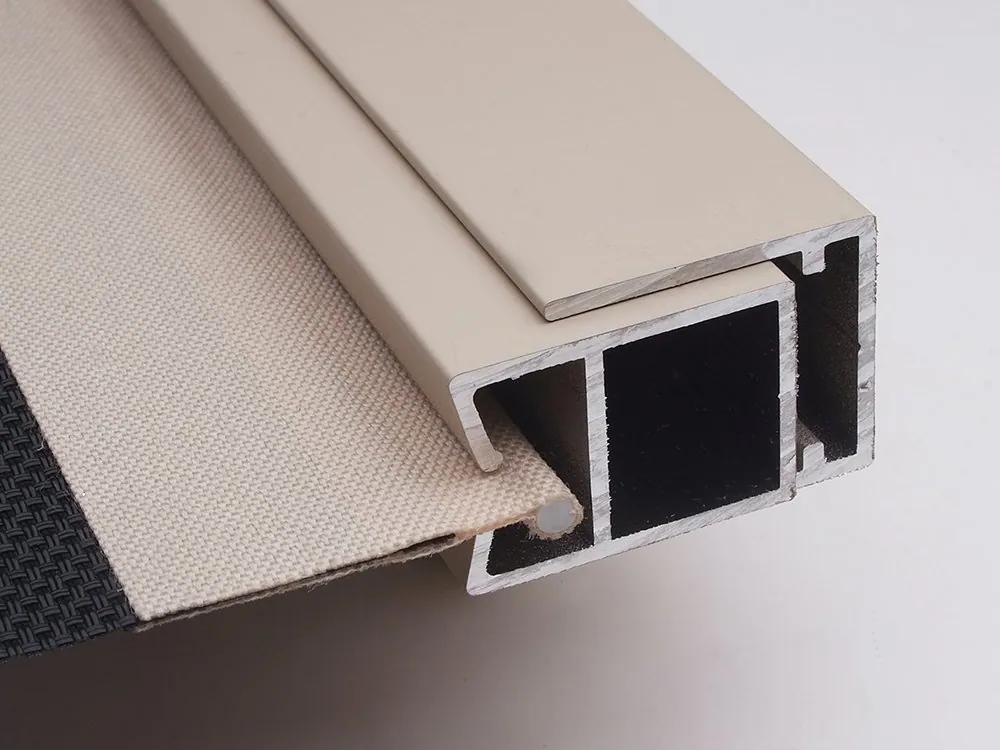

Cutaway of a Ziptrak side channel with the fabric edge captured inside the aluminium profile
Ziptrak® inner channel

Ziptrak® or Zipscreen?

Both are track-guided outdoor blinds with the fabric held in side channels, in mesh or PVC, with custom powder-coated colours. The main differences are the headbox shape, the channelling system and the hold-down locks. See the range of options at our display centre in Campbelltown.

AspectZiptrak® outdoor blindsZipscreen blinds
OperationHand or motorised. A spring-balanced blind can be left at an intermediate height.Manual spring-loaded operation as standard, or a manual crank, or a Somfy or Acmeda motor with remote control.
How the fabric is heldA spline welded to each side of the fabric slides down inner and outer channels fixed to a post or wall.‘zLOCK’ technology locks the fabric into a patented side-channel design, with inner and outer channels at each side.
Hold-down locksLatches at each side of the bottom rail, or a centre release handle.Ultra-Lock, the Acmeda auto lock, and/or side slide bolts. Automate motors add one-touch closure and locking.
Top of the blindAn open or closed hood to hide the workings, or an additional pelmet over the roller.A 125 mm square box cassette, or enclosed head-box covers or hoods.
Fabric1% or 5% openness mesh, clear or tinted PVC, and acrylic fabrics.1% or 5% openness mesh, privacy mesh, clear or tinted PVC, and acrylic fabrics.
SizesOpenings up to about 6 m wide in mesh (4.5 m in clear PVC) and about 3.5 m dropSome configurations up to 7 m wide and 5 m drop, depending on system, fabric, operation, fixing and exposure; confirmed at the measure.
In strong windFully retracted, or left down and locked. Most vulnerable half way.Wind resistant, but not designed to stop strong winds. Raise it during strong winds or storms.

We offer both; the measure decides which suits the opening. Read the full Ziptrak versus Zipscreen comparison

Not sure which suits your opening? We measure at your place and talk through both.

Free in-home measure and quoteOr call (08) 8336 2066

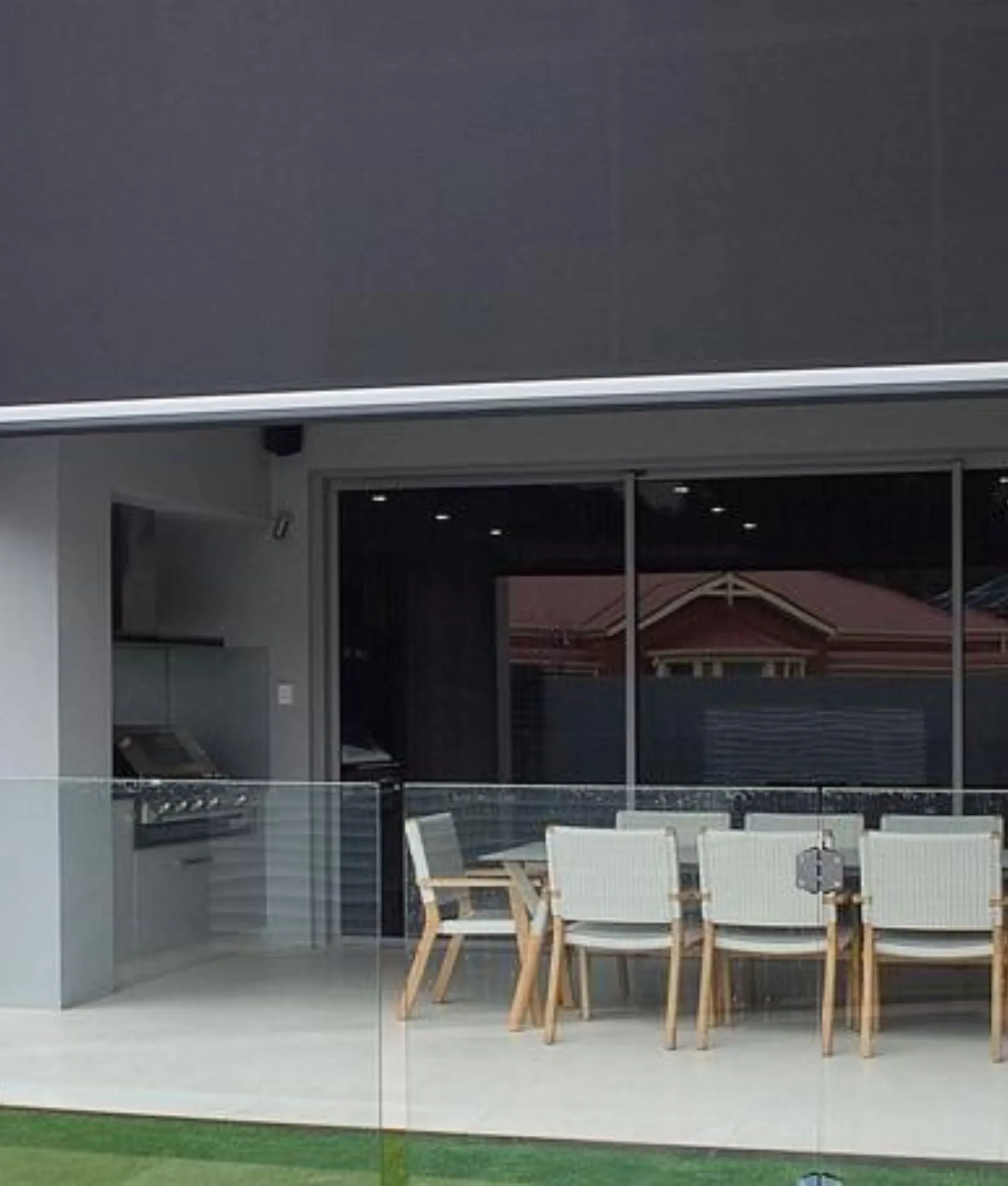

Down for shade, up for the view

A spring-balanced Ziptrak® blind can be left at an intermediate height.

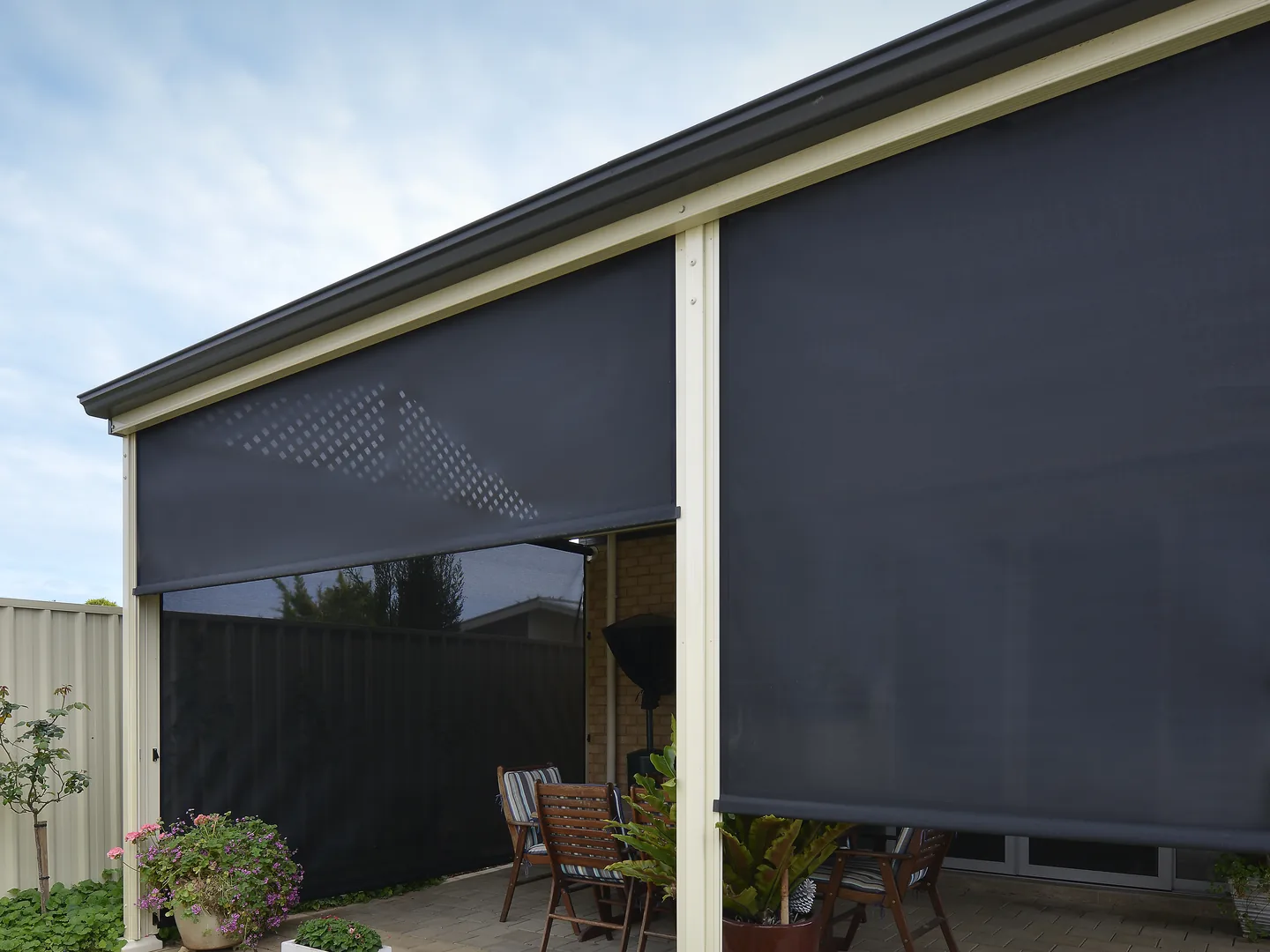

Patio with the right-hand outdoor blind lowered close to the pavingThe same patio with the right-hand outdoor blind raised, showing the sliding door behind

From first question to a fitted blind

Stan Bond offers a free no-obligation consultation on Ziptrak® outdoor blinds.

  1. Tell us about the opening

    One blind or a whole alfresco is a good place to start. Send a request or call the showroom, and a person from our team contacts you to arrange a time.

  2. We measure at your place

    A consultant measures each opening and talks through the options, fabrics and samples, with recommendations based on your style, needs and budget.

  3. A written quote

    We send a written quote. You can decide whether to go ahead once you have it.

  4. Made to measure, then fitted

    Our installers fit the made-to-measure Ziptrak® blinds to the prepared opening, check their operation and show you how to use them.

Questions about Ziptrak® blinds

How much do Ziptrak® outdoor blinds cost?

Generally, Ziptrak® Outdoor Blinds cost between $1,000 & $4,000. For larger areas, Ziptrak® HD can cost between $3,500 & $5,000.

What is a Ziptrak® outdoor blind?

A Ziptrak® blind is a spring-driven outdoor blind whose fabric slides in aluminium side tracks, held by a spline. The tracks help close the side gaps that let light, wind and rain through. It stops at any height, and a centre release lock is included as standard. Stan Bond is a Ziptrak® Authorised Fabricator.

What's the difference between Ziptrak® and Zipscreen?

Some of the main differences between Ziptrak® and Zipscreen include the headbox shape, channelling system and hold down locks. The Stan Bond team have provided an in depth comparison of the two Outdoor Blinds on our Blog. The full article highlighting the differences between Zipscreen and Ziptrak® is in our Ziptrak® and Zipscreen comparison.

How is a Ziptrak blind operated?

The standard is a spring with a centre release lock, so you lift and lower by hand and it stays where you stop it. Crank and motorised options are available, with Automate or Somfy controls. A mains-powered motor must be wired by a licensed electrician. We recommend the right option at your free measure.

Can Ziptrak blinds be motorised?

Yes. Ziptrak blinds can be motorised, with Automate or Somfy controls. A mains-powered motor must be wired by a licensed electrician. We recommend the right option at your free measure.

Can Ziptrak blinds be stopped at any height?

Yes. A spring-balanced Ziptrak® blind can be left at an intermediate height. Its manual locking mechanism engages when fully lowered; motorised operation differs. Ask us which arrangement suits your opening and exposure.

Can you see through Ziptrak® blinds?

With Ziptrak® Outdoor Blinds, you have the choice of 1% openness mesh, 5% openness mesh or PVC. All mesh options allow you to see through the blind, however 1% openness mesh has a tighter weave, which will block out more view, sunlight, wind and rain. 5% openness mesh is a popular option. PVC is completely see through but does require frequent cleaning.

Should I choose mesh or clear PVC?

Choose by what matters most. Mesh keeps airflow and gives some daytime privacy, depending on openness (5% or 1%). Clear PVC keeps the view and works as a weather barrier but gives no privacy, can yellow over time, and needs an approved cleaner. Never leave PVC rolled up in direct sun.

What fabrics are available for Ziptrak blinds?

Ziptrak fabrics include 1% or 5% openness mesh (light filtering with insect protection), clear or tinted PVC (for enclosing verandahs while maintaining the view), and acrylic fabrics. A wide range of colours and opacity levels is available.

How big can a Ziptrak® blind be?

Ziptrak outdoor blinds can be made up to about 6 m wide in mesh or 4.5 m wide in clear PVC, with drops up to about 3.5 m. The right size depends on the fabric, hood and opening, and we confirm it at your free measure.

Will a Ziptrak blind stop strong wind?

No. Ziptrak® blinds are wind-resistant, but they are shade and privacy products, not storm barriers. In windy conditions, raise the blind fully, or lower it fully and engage the bottom locks. A blind left part-way is the most vulnerable. In severe weather or storms, raise it fully, as it can be damaged. Ask us about the locking option that suits your site.

My Ziptrak blind moves in the wind. Is it faulty?

Usually not. A spring-operated blind can move slightly in wind unless its bottom locks are engaged in the fully down position. If it is coming out of the track, the kedar may need attention, and we can arrange a service visit with photos first.

How do I clean and look after my Ziptrak blind?

Hose it gently with cold water and a soft brush, wipe the track channels periodically to keep the glide mechanism smooth, and keep the side tracks clear of grit, leaves and salt. Spray food-grade silicone into the tracks every six to twelve months. Avoid harsh chemicals or abrasive cleaners. Never use WD-40 or a pressure washer, and do not roll the blind up wet. Rinse more often near the coast.

Can you just replace the fabric on my Ziptrak blind?

Often yes, as a cloth-only replacement, but it depends on the blind's age, make and hardware. We ask for photos of the whole blind, the tracks and the bottom rail, plus exact measurements. Older blinds may need new kedar or spline as well, because these wear over time.

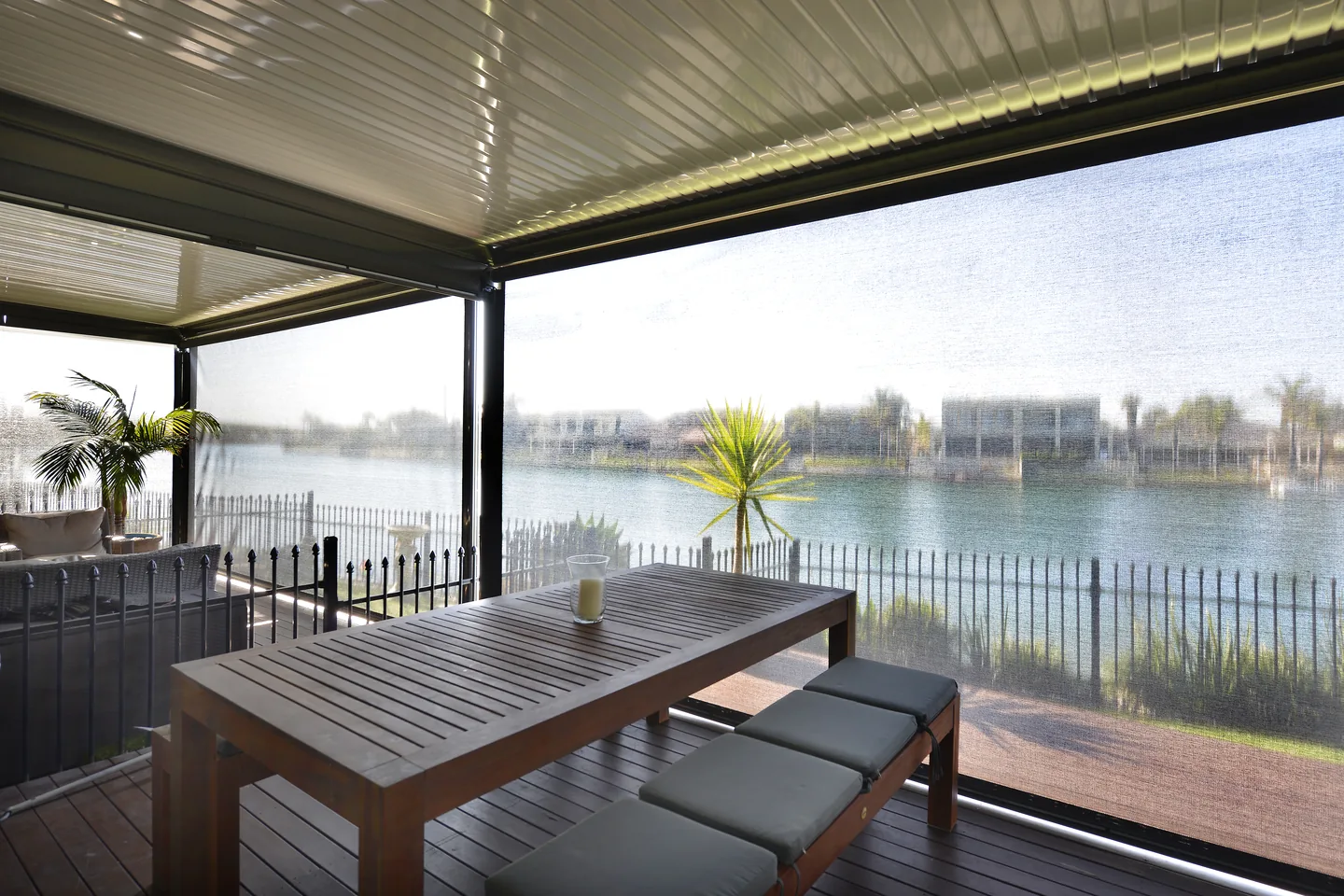

View from a covered deck through a lowered mesh outdoor blind towards the water

What is covered

5 yearsProduct parts and operation

All parts repaired or replaced if they do not work correctly.

2 yearsInstallation and onsite labour

No cost for any onsite work or for transporting the product.

Passed onSupplier extended warranties

If a part of your product has a longer warranty than 5 years, we pass that on in full.

For the first two years a warranty claim costs you nothing. If it is broken, we fix it. Applies to the original owner and to orders placed from 1 July 2019. Damage or incorrect use is not covered. Read the Comfort Warranty.
